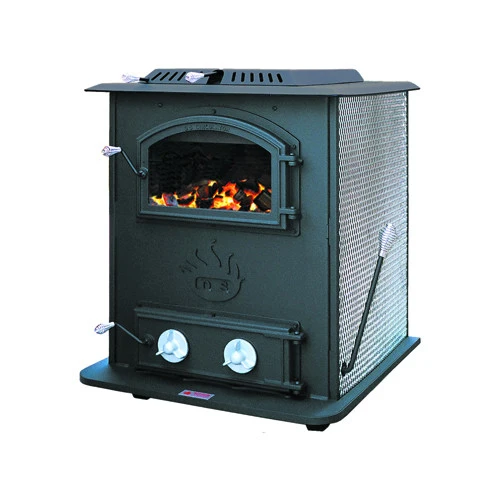

DS Circulator 1500: DS Machine Coal Stove

Description

The DS Circulator will burn for up to two days. Known for its slow burning, the coal hopper is gravity fed, using no electricity. The DS regulator controls drafts. With different BTU's available, you can heat individual rooms or your whole house.

Features

• Burns coal
• Heats up to 1000-2000 sq. ft.
• Preset Secondary Combustion System
• Bi-metal draft regulator
• Built from heavy plate steel
• Superior cast iron shaker grates

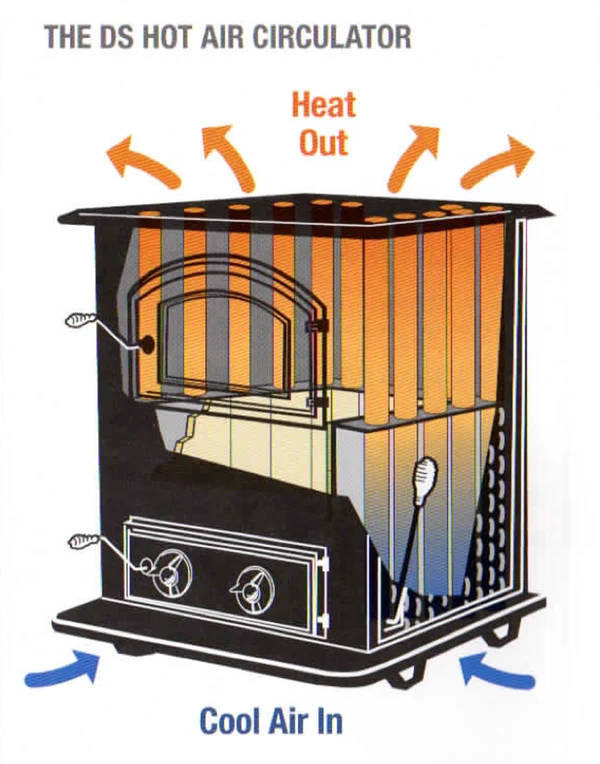

• Heat exchanger tubes through firebox for natural circulation
• Gravity fed coal hopper holds 50lbs
• Burn time 24-48 hours
• Extended burn time with heating output
• Cast iron air tight  doors
• Large glass viewing door
• Exterior Shaker Handles
• Minimal Dust
• Made in USA by the Amish

Specifications

Fuel: Coal

Heating Area: 1,000- 2,000 sq. ft.

Efficiency: 83%

BTU Approx: 96,000 BTU

Firebox Size (WxD): 16"x 16"

Fire box volume: 3.2 cu. ft.

Log Size: 14"

Overall Size: (WxDxH): 28.5" x 26" x 36.75"

Load Door Size (WxH): 16" x 10.5"

Ash Door Size (WxH): 16.5" x 5.5"

Top Exhaust: N/A

Rear Exhaust: 6" -30.25" center of flue

Coal hopper Capacity (Approx.): 50 lbs

Coal volume with hopper (Approx.): 110lbs

U.L. Tested: YES *

Weight: 570 lbs

Warming Shelf: Optional

Warranty: 5-year limit

Clearance From Combustibles

Side: 24"

Back: 24"

Front: 48"

Flue/Stove pipe: 15"

 Ceiling: 36"

PDF DS CIRCULATOR SPECIFICATIONS AND DIMENSIONS
