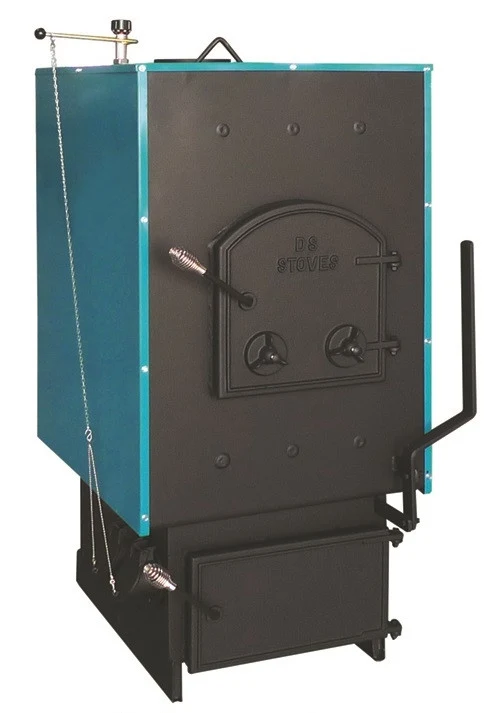

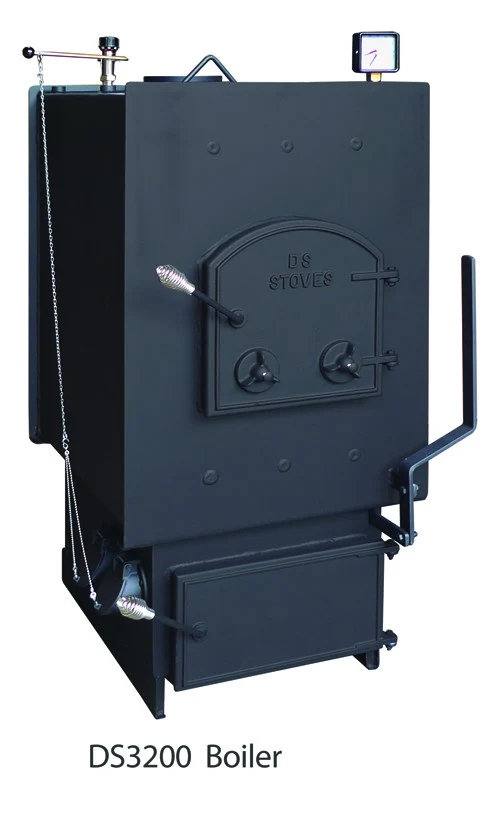

DS Machine Coal and Wood Boiler: Aqua Gem Boiler #3200

This hydronic system requires no electricity to heat water for floor heating, baseboard, freestanding radiators, heat pumps, or domestic water. It works well with new or existing oil or electric boilers. Our boilers circulate water in the front to prevent cracking. Each unit is pressure tested to 120 PSI and has a powerful heat exchanger for maximum efficiency. Constructed from 1/4" steel, this Aqua-Gem boiler easily maintains water temperature and features a large capacity ash pan. All boilers are designed with the best cast iron grate system and built to last.

Features

• Burns Coal and Wood
• Safety tested to UL Standards
• Secondary combustion system
• Heavy duty cast iron grate system with external shaker handle
• 1/2" NPT fitting for temperature pressure gauge
• 3/4" NPT fitting for ASME pressure relief valve
• 3/4" NPT fitting for Aquastat
• 3/4" fitting for Samson draft regulator
• Large 6" high ash pan
• Optional 4-gallon per minute domestic water coil
• Optional forced drat
• Optional insulation/sheet metal cabinet
• Made in the USA

Specifications

Fuel Coal and Wood

Heating Area 2000-3500 sq. ft.

Efficiency 78%

BTU approximately  160,000

Firebox Size (WxD) 19" x 24" x 25"

Fire box volume 7.0 cu. ft.

Log Size 22"

Overall size (W x D x H) 26" x 30" x 53.5"

Load Door Size (W x H) 14" x 14.5"

Ash Door Size (W x H) 16.5" x 9"

Top Exhaust  7" Standard

Rear Exhaust 7" - 42.5" center of Flue

Water capacity 40 gallons

Inlet/ Outlet 2"

UL Tested Yes

Weight 1050 lbs

Insulated Jacket Optional

Warranty 5-year limited  and 1-year controls

Clearances From Combustibles

Side 12"

Back 16"

Front 48"

Flue/Stove pipe 18"

Top of plenum to ceiling 36"

PDF DS BOILER SPECIFICATIONS AND DIMENSIONS
