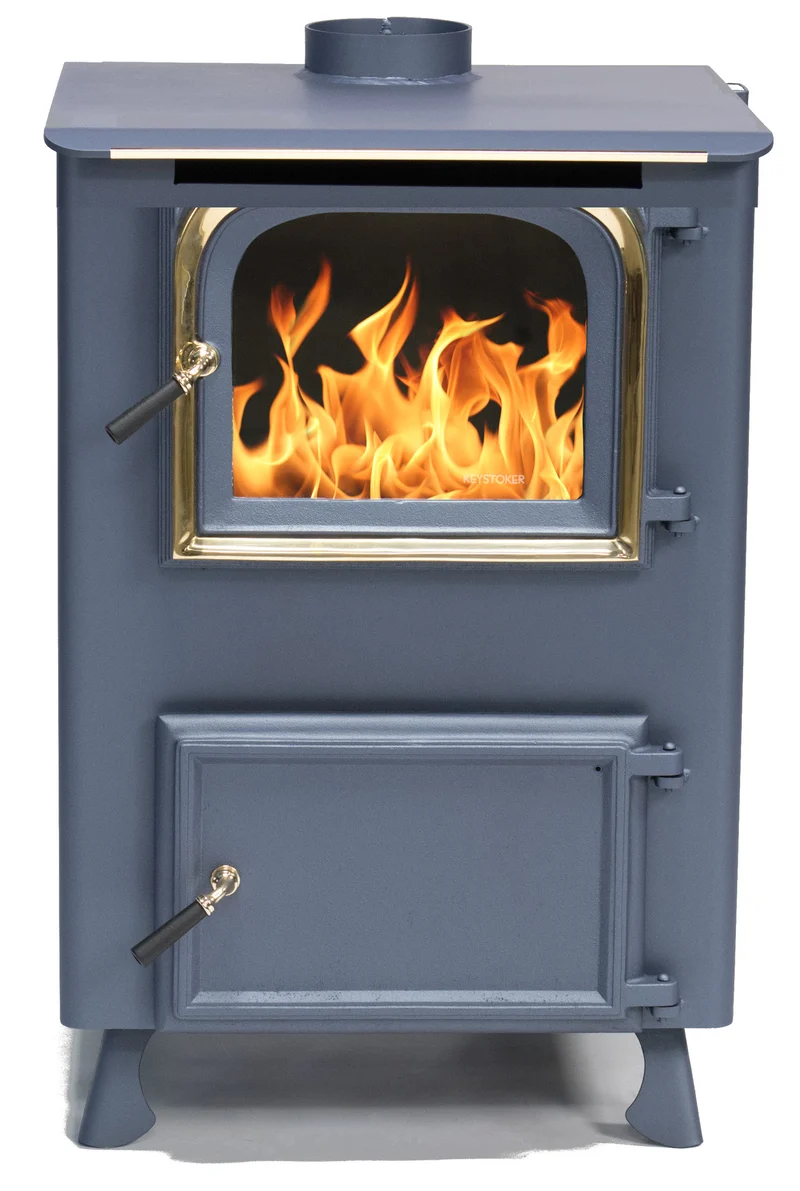

Keystoker: Automatic Coal Stoves 90,000 BTU

The single wall 90,000 BTU and the double wall 105,000 BTU stoker stoves using the patented built in heat exchanger and flat grate stoker design gives you the highest possible efficiency in a coal stove. Sit back and enjoy the warmth of the popular keystoker stove and the savings of using clean burning anthracite coal. See advantages and learn about the great options on these popular stoves.

Features

• For chimney or direct vent
• Top or bottom vent optional
• 10 year stove warranty
• Fabricated with heavy gauge steel, cast iron grate, ash door and fire door
• Uses clean burning anthracite: rice, buckwheat, or a mix of both
• Patented heat exchanger: maximized efficiency from 88-90% efficiency
• Blends the heat and efficiency of a forced hot air furnace with the elegance and ambiance of a warm fireplace
• Optional 6" or 8" convection air vent
• Fully automatic: no need to shake grates or shovel ashes
• Comes completely assembled except for hopper
• Heat output controlled by your room thermostat
• Flat grate design

Specifications

Automatic Keystoker Stove Specifications	105 Stove	90 Stove
BTU's	105,000	90,000
Flue Exit	Top/Rear	Top/Rear
Flue Size	6"	6"
Height	39"	39"
Rear Flue Height	6"	6"
Depth	35"	35"
Width	23 ½"	23 ½"
Weight	355	305
Hopper Capacity	110 lb	110 lb
Blower CFM	350-500 cfm	265-350 cfm
Glass Door	Yes	Yes
Side Clearance	8"	8"
Rear Clearance	0"	0"
